USB 2D Position

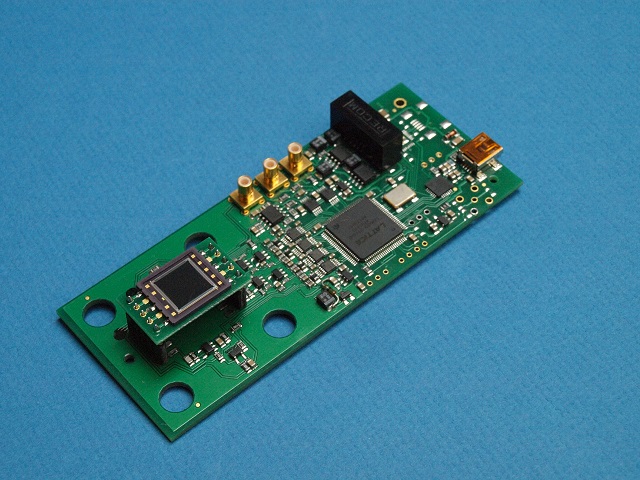

The USB 2D PSD is an easy-to-use two-dimensional position-sensitive detector with analog and digital outputs.
Signal processing and calculations are performed in an FPGA, providing low-drift analog and digital readout.
Bandwidth: DC to 50 kHz, typ.
Transimpedance Gain: 1000 V/A
Photodiode: Hamamatsu S599x-01
Interface: USB,
no additional power
supply required
Analog Outputs: SMB connectors
for X, Y and intensity
Signal processing and calculations are performed in an FPGA, providing low-drift analog and digital readout.
Bandwidth: DC to 50 kHz, typ.
Transimpedance Gain: 1000 V/A
Photodiode: Hamamatsu S599x-01
Interface: USB,
no additional power
supply required
Analog Outputs: SMB connectors
for X, Y and intensity
