Spectrometer:
Here you find minispectrometer for the visible range from about 200 nm to 800 nm. The USB-VIS-OEM is a low cost version with very low noise. The USB2-OEM-MMS is a readout for the ZEISS MMS spectrometer
The Zeiss MMS spectrometer is based in a NMOS line sensor, the sensor of the USB-VIS-OEM spectrometer is CMOS. The USB-VIS-OEM spectrometer can be equipped with a SMA connector. Both spectrometers provide an on-board 32 bit signal processor for signal averaging to reduce noise.
The Zeiss MMS spectrometer is based in a NMOS line sensor, the sensor of the USB-VIS-OEM spectrometer is CMOS. The USB-VIS-OEM spectrometer can be equipped with a SMA connector. Both spectrometers provide an on-board 32 bit signal processor for signal averaging to reduce noise.

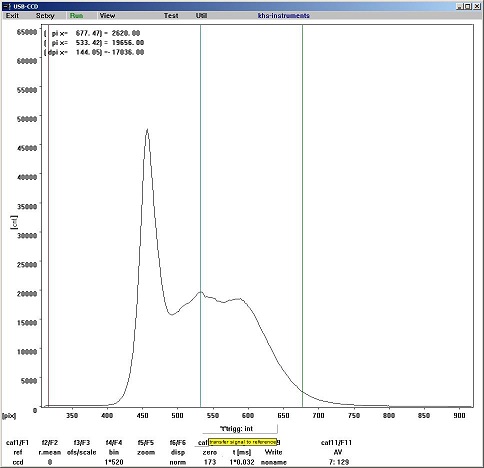

The USB-VIS-OEM minispectrometer spectrometer designed for LED evaluation.
Pixels........................... 288
Wavelength Range...... 380 nm to 850 nm
ADC............................. 16 bit with averaging
Offset ......................... 8 bit
Interface....................... USB 2.0.
Datasheet
Pixels........................... 288
Wavelength Range...... 380 nm to 850 nm
ADC............................. 16 bit with averaging
Offset ......................... 8 bit
Interface....................... USB 2.0.
Datasheet

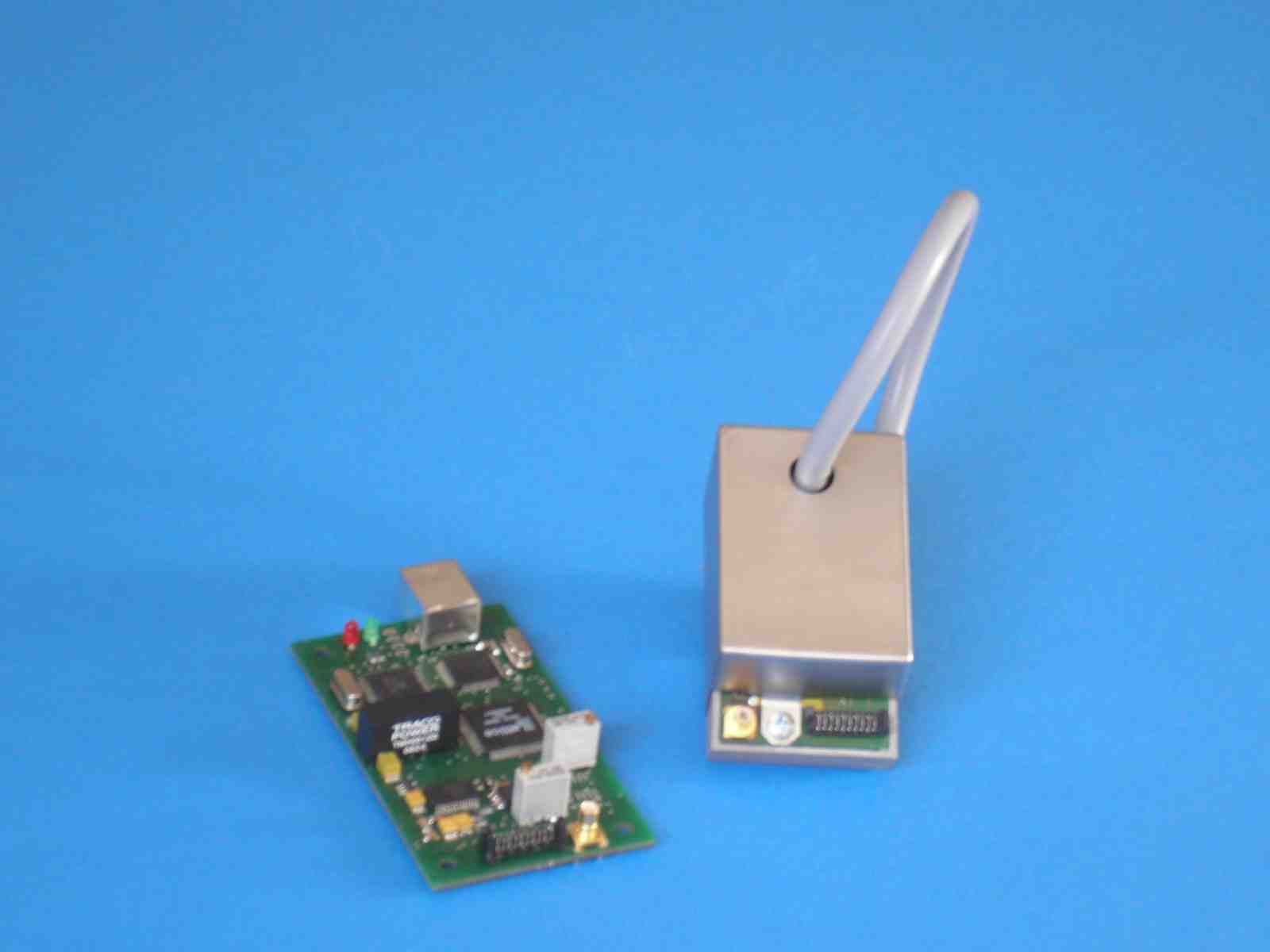

The USB2-OEM-MMS-A
Readout for Zeiss MMS Spectrometer
Pixels........................... 256
ADC............................. 16 bit
Offset ......................... 8 bit
Interface....................... USB 2.0.
Readout for Zeiss MMS Spectrometer
Pixels........................... 256
ADC............................. 16 bit
Offset ......................... 8 bit
Interface....................... USB 2.0.
