analog::blocks Base Board
Order No.: ABL-M-P-34-10-SI
Order No.: ABL-M-B-34-10-SI-SMA4
last update 260720
analog::blocks Base Board

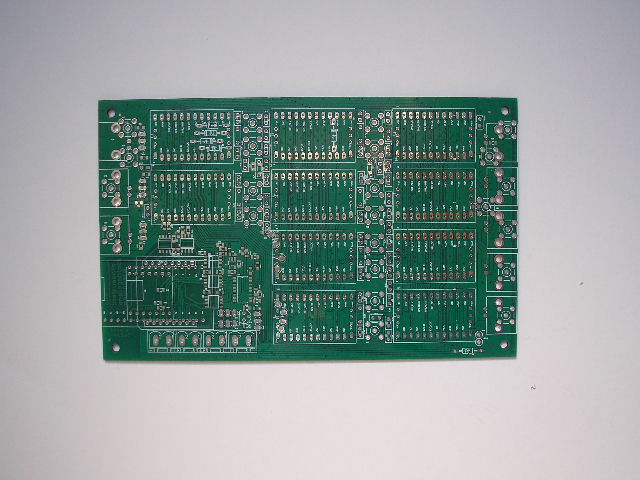

Unpopulated analog::blocks Base Board
The analog::blocks base board provides ten standard module positions and has a layout for an isolated I²C and a SPI interface.
The unpopulated Base Board provides maximum flexibility for custom configuration at low cost
It can be populated with SMA / SMB or with some restrictions BNC connectors.
The unpopulated Base Board provides maximum flexibility for custom configuration at low cost
It can be populated with SMA / SMB or with some restrictions BNC connectors.
Order No.: ABL-M-P-34-10-SI

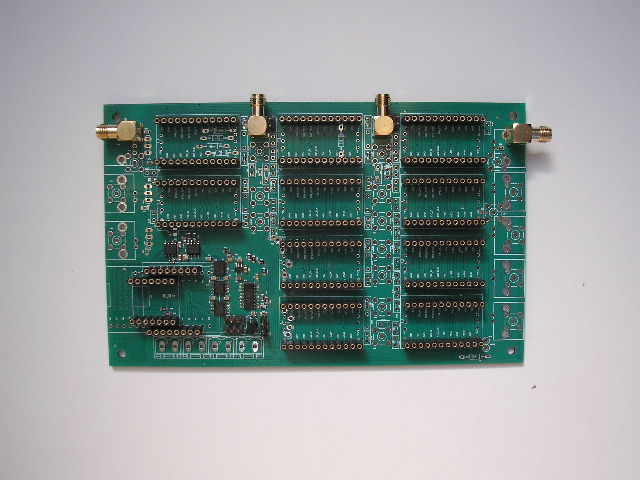

Populated analog::blocks Base Board
The populated analog::blocks Base Board provides a ready-to-use platform for rapid analog and mixed-signal development.
Ten module positions provide access to the common power rails, analog signal paths and digital control interfaces.
Four SMA connectors provide external access to the analog signal paths for measurement and signal injection.
Galvanically isolated SPI and I²C interfaces minimize ground-loop interference, while an addressable chip-select multiplexer allows up to eight SPI devices to be controlled through the shared bus
Ten module positions provide access to the common power rails, analog signal paths and digital control interfaces.
Four SMA connectors provide external access to the analog signal paths for measurement and signal injection.
Galvanically isolated SPI and I²C interfaces minimize ground-loop interference, while an addressable chip-select multiplexer allows up to eight SPI devices to be controlled through the shared bus
Order No.: ABL-M-B-34-10-SI-SMA4
last update 260720
