analog::blocks Opamp Modules

analog::blocks OpAmp Modules provide ready-to-use building blocks for amplification, filtering and analog signal conditioning. Different module designs cover general-purpose, high-speed and transimpedance applications

General Purpose OpAmp Modules

General Purpose OpAmp Modules support a wide range of analog signal conditioning applications. Different versions are available for single and dual operational amplifiers in DIL and SMD packages.

SO-8 OpAmp Module

The SO-8 OpAmp Module provides a ready-to-use general-purpose amplifier for analog signal conditioning. This version uses an OP07 precision operational amplifier with a gain of 10.

Gain: 10 ±5%
Resistor network: 10 kΩ / 100 kΩ
Bandwidth: 40 kHz (−3 dB)
Supply: ±12 V
OpAmp: OP07

Order No.: ABL-MAO-11-U1-S08-OP07-G10

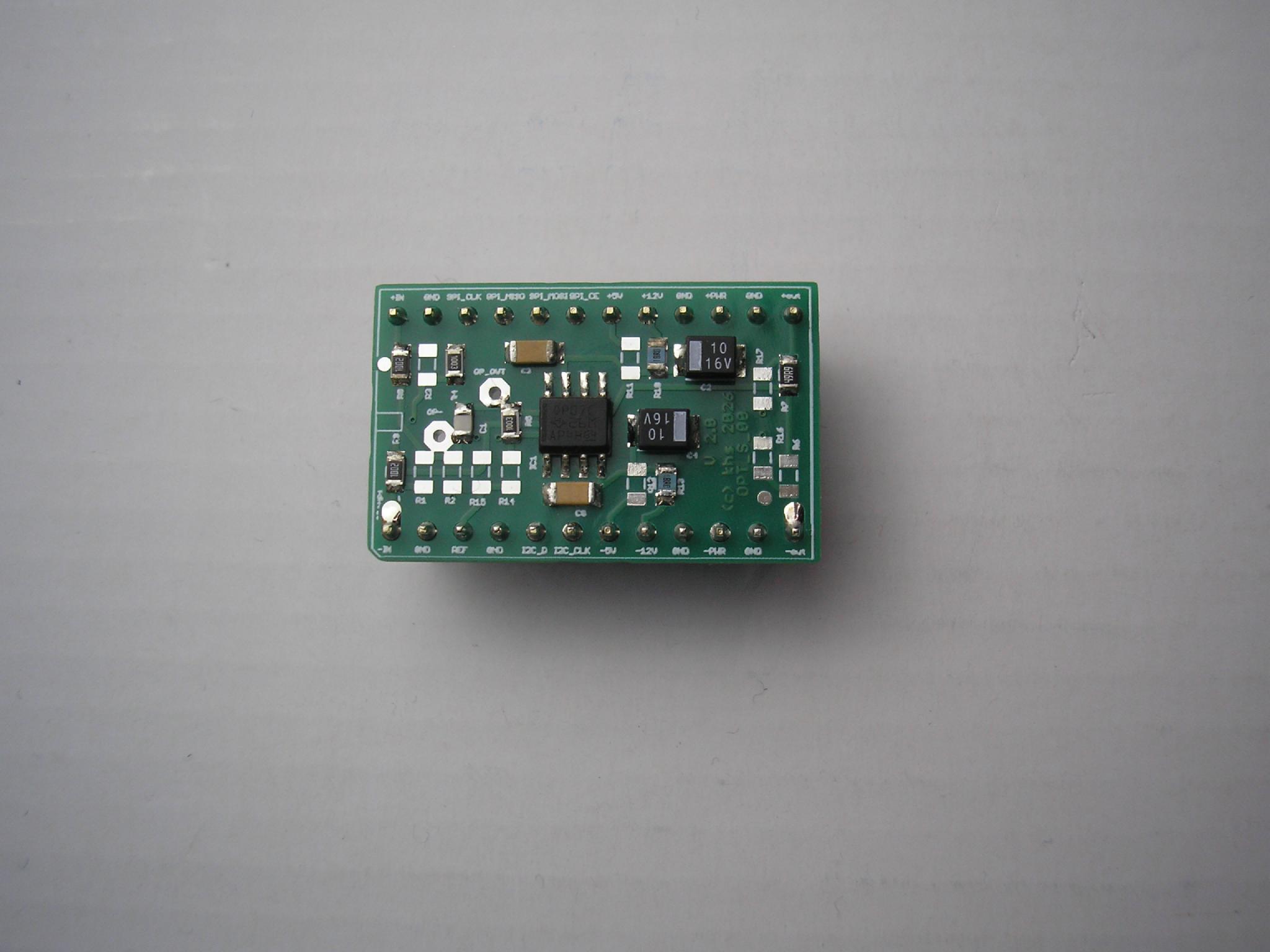

SO-8 General Purpose OpAmp Module
User Manual (PDF)

Wideband OpAmp Modules

High-Speed OpAmp Modules use compact amplifier packages and optimized signal paths for wide-bandwidth applications up to 100 MHz and beyond.

SO-8 Wideband OpAmp Module

The Wideband OpAmp Module provides a ready-to-use wide-bandwidth amplifier for fast analog signal conditioning. This version uses an AD8055 operational amplifier with a nominal gain of 10.

Gain: 10 ±5%
Resistor network: 1 kΩ / 10 kΩ
Bandwidth: 22 MHz (−3 dB)
Supply: ±5 V
OpAmp: AD8055

Order No.: ABL-MAO-11-W1-S08-AD8055-G10

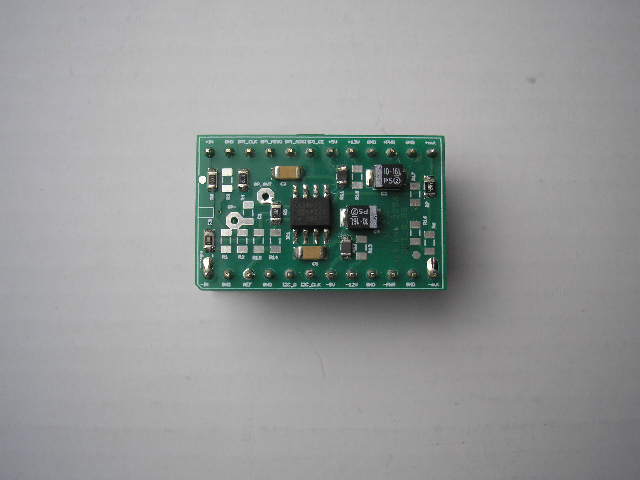

SO-8 Wideband OpAmp Module
User Manual (PDF)

Transimpedance Amplifier Module

Transimpedance Amplifier Modules are optimized for converting small input currents into measurable voltages, with layouts designed for low input current, low leakage and high feedback resistance.

Additional solder pads across the feedback resistor allow the compensation to be easily adapted to the capacitance of the connected sensor.

Transimpedance gain: 1 V/µA ±5%
Feedback resistor: 1 MΩ / 2.2pF
Bandwidth (small signal) 70 kHz (−3 dB)
Supply: ±12 V
OpAmp: TL081

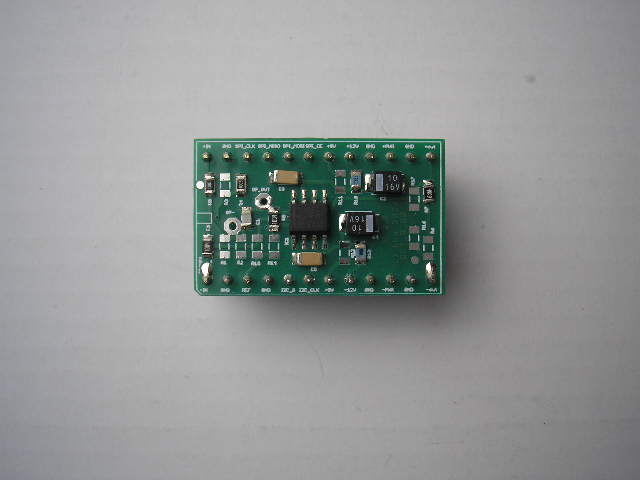

SO-8 Transimpedance OpAmp Module
User Manual (PDF)

Order No.: ABL-MAO-11-T1-S08-TL081-T1E6
