analog::blocks Power Modules
Power Modules provide flexible supply options for analog::blocks circuits. Power can be supplied by the Baseboard or generated by a Power Module and fed into the system.
ABL-MPI-11-U12-12
ABL-MPI-11-U21-30

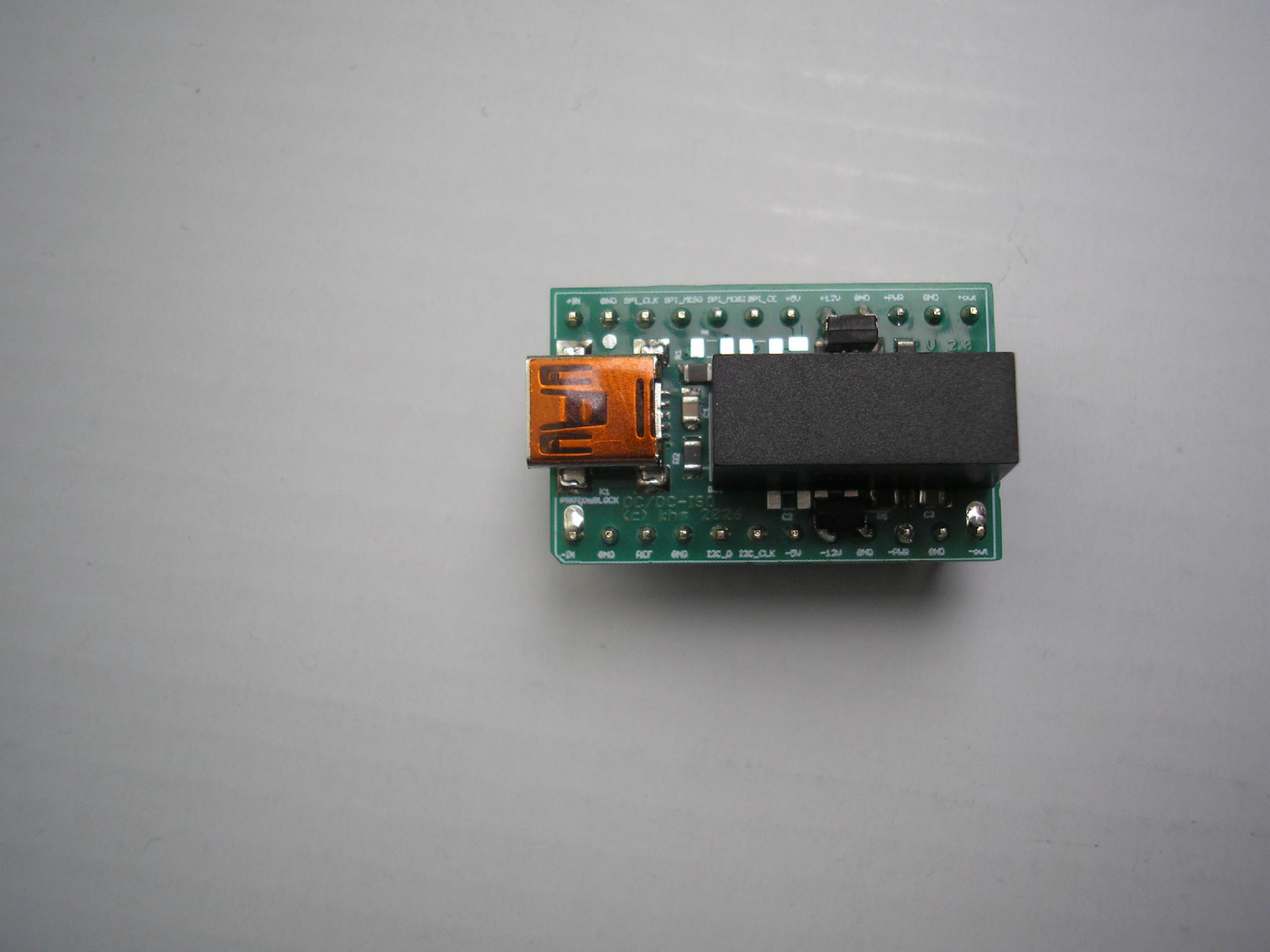

Isolated USB to +-12 V Power Module
The isolated USB Bipolar DC/DC Power Module generates positive and negative analog supply rails directly from a 5 V USB source. Different DC/DC converters can be fitted to provide ±9 V, ±12 V or ±15 V, allowing the supply voltage to be adapted to the application.
The module can power the analog::blocks Baseboard or be used independently with prototype boards and breadboards.
The module can power the analog::blocks Baseboard or be used independently with prototype boards and breadboards.
ABL-MPI-11-U12-12

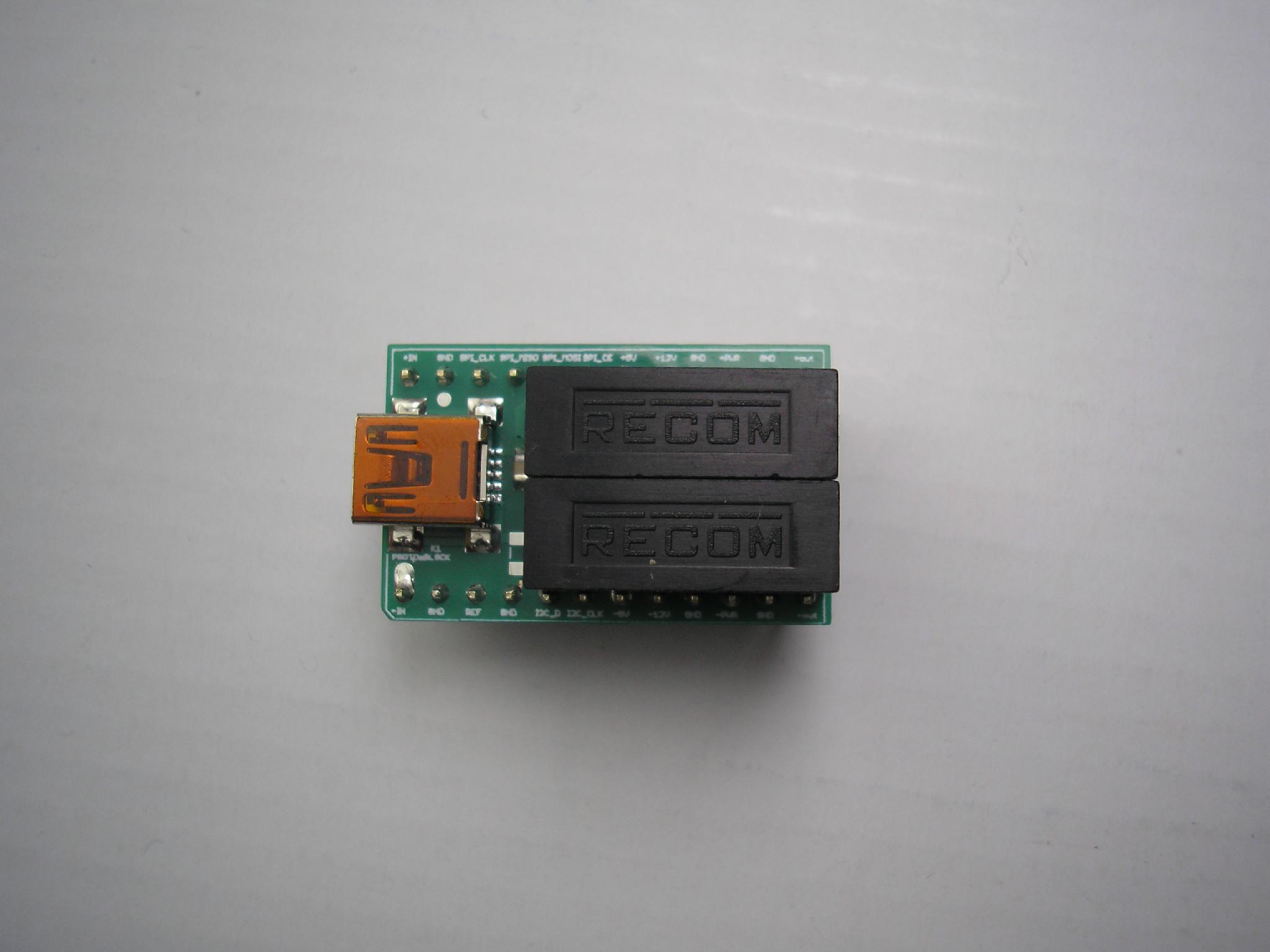

Isolated USB to ±30 V Power Module
The isolated USB to ±30 V DC/DC Module generates a bipolar auxiliary supply directly from a 5 V USB source.
The ±30 V output is connected to the analog::blocks +PWR and −PWR rails and provides up to 2 W total output power for high-voltage analog circuits.
The ±30 V output is connected to the analog::blocks +PWR and −PWR rails and provides up to 2 W total output power for high-voltage analog circuits.
ABL-MPI-11-U21-30

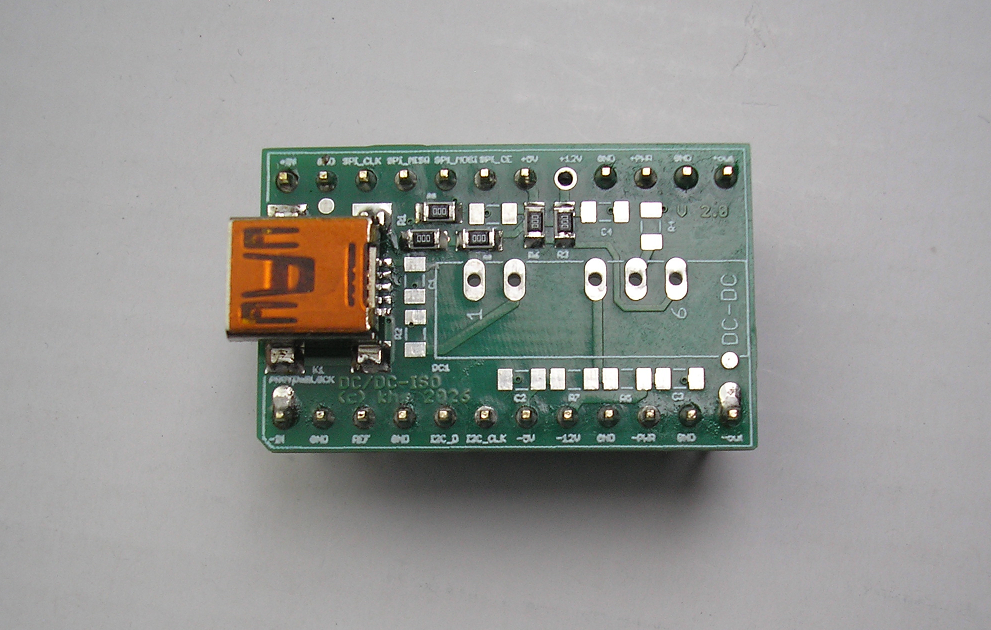

USB to+5 V Power Module
The USB to +5 V Power Module supplies the analog::blocks +5 V rail directly from a standard USB port. It provides a simple power source for digital circuits and other modules requiring a 5 V supply without additional voltage conversion.
ABL-MPI-11-U01-05

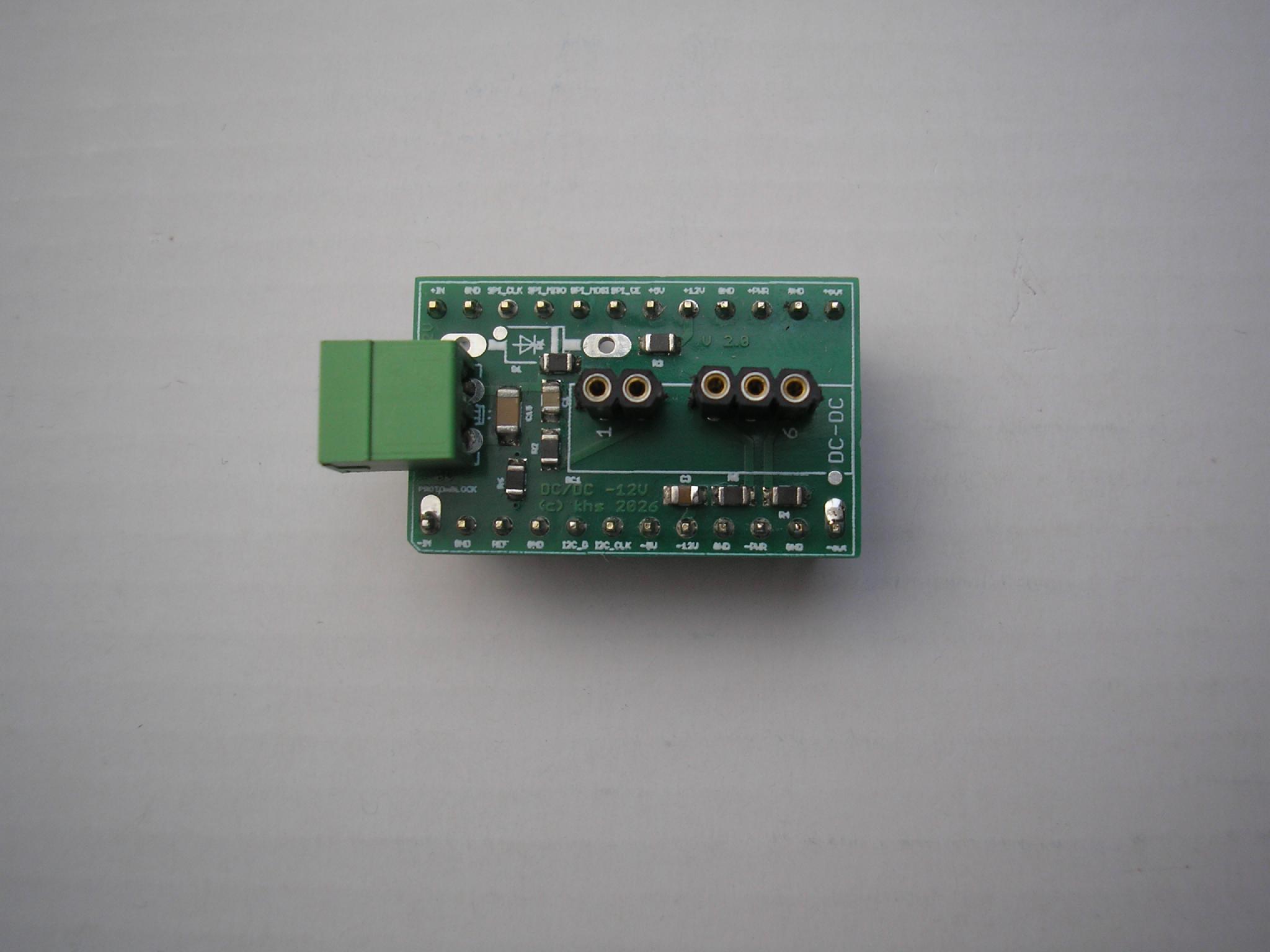

12 V Power & DC/DC Module
The 12 V Power & DC/DC Module allows an external 12 V supply of up to 1 A to be connected directly to the analog::blocks power rails. If a negative supply voltage is required, an optional DC/DC converter can be fitted to generate the negative rail.
The replaceable DC/DC converter position also provides a convenient way to evaluate and compare different converter types, output voltages and noise performance within an actual analog circuit.
The replaceable DC/DC converter position also provides a convenient way to evaluate and compare different converter types, output voltages and noise performance within an actual analog circuit.
ABL-MPD-11-E11-12

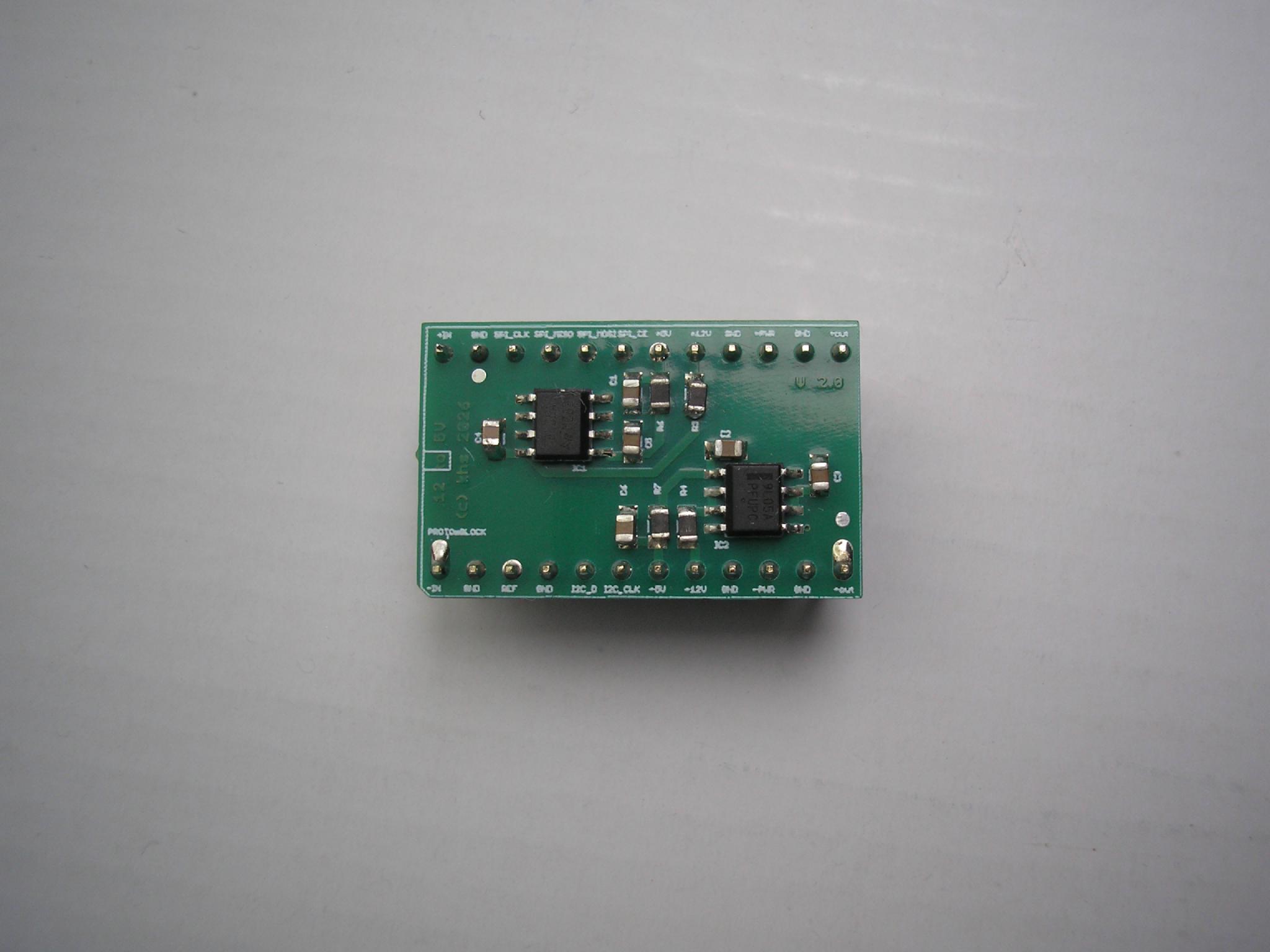

±12 V to ±5 V Linear Regulator Module
The ±12 V to ±5 V Linear Regulator Module uses 78L05 and 79L05 regulators to generate the ±5 V supply rails from the existing ±12 V supply, eliminating the need for a separate ±5 V power source.
When fitted with stacking headers, another Power Module can be mounted on top of the regulator module without occupying an additional Base Board position.
When fitted with stacking headers, another Power Module can be mounted on top of the regulator module without occupying an additional Base Board position.
ABL-MPR-11-I02-05
