analog::blocks OpAmp Prototype Boards
last update 260720
analog::blocks OpAmp Prototype Boards
Prototype OpAmp Boards provide pre-routed differential amplifier structures for developing and testing a wide range of operational amplifier circuits. Two versions are available for SO-8 and DIL-8 devices, allowing either compact SMD implementation or easy device replacement during evaluation.
General Purpose OpAmp Boards provide pre-routed differential amplifier structures for developing and testing a wide range of operational amplifier circuits.
Order No.: ABL-PAO-11-U1-S08
SO-8 General Purpose OpAmp Board
Order No.: ABL-PAO-11-U1-D08
DIL-8 General Purpose OpAmp Board
General Purpose OpAmp Boards
General Purpose OpAmp Boards provide pre-routed differential amplifier structures for developing and testing a wide range of operational amplifier circuits.

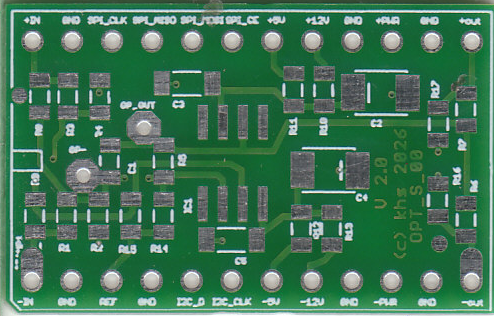

SO-8 OpAmp Prototype Board
Designed for standard SO-8 operational amplifiers, providing a compact implementation for SMD devices.
Order No.: ABL-PAO-11-U1-S08
SO-8 General Purpose OpAmp Board
DIL-8 OpAmp Prototype Board
Designed for standard DIL-8 operational amplifiers.
A socket can be used for quick exchange and comparison of different devices.
A socket can be used for quick exchange and comparison of different devices.
Order No.: ABL-PAO-11-U1-D08
DIL-8 General Purpose OpAmp Board
