analog::blocks Universal Prototype Boards
Universal Prototype Board provide general-purpose prototyping areas for building custom analog and mixed-signal circuits.
The analog::blocks interface provides direct access to power, ground, analog signal paths and digital interfaces, while the prototyping area remains completely open for your own circuit.
Different grid sizes support conventional through-hole components as well as compact SMD circuits that are difficult to build on standard breadboards.
50 mil Prototype Boards bridge the gap between compact SMD prototyping and conventional 100 mil breadboard systems.
Standard Size Prototype Boards can be used on the analog::blocks Baseboard as well as conventional breadboards. Different grid sizes support both conventional through-hole and compact circuit designs.
Order No.: ABL-PU-11-100
Order No.: ABL-PU-11-050
The analog::blocks interface provides direct access to power, ground, analog signal paths and digital interfaces, while the prototyping area remains completely open for your own circuit.
Different grid sizes support conventional through-hole components as well as compact SMD circuits that are difficult to build on standard breadboards.
50 mil Prototype Boards bridge the gap between compact SMD prototyping and conventional 100 mil breadboard systems.
Standard Size Prototype Boards
Standard Size Prototype Boards can be used on the analog::blocks Baseboard as well as conventional breadboards. Different grid sizes support both conventional through-hole and compact circuit designs.

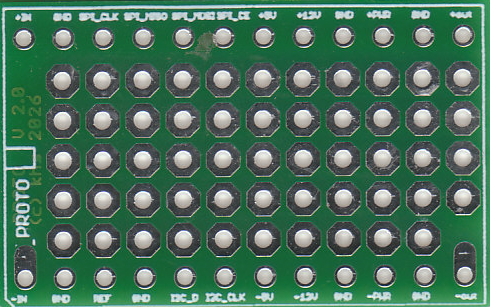

100 mil Universal Prototype Board
The 100 mil (2.54 mm) grid is ideal for conventional through-hole components, connectors and experimental circuits.
Order No.: ABL-PU-11-100

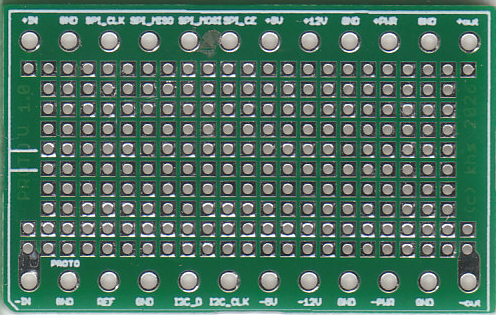

50 mil Universal Prototype Board
The 50 mil Universal Prototype Module combines a compact 1.27 mm prototyping grid with a standard 2.54 mm DIL pin spacing. This allows compact circuits to be built on the module while remaining compatible with conventional breadboards and the analog::blocks Baseboard.
Order No.: ABL-PU-11-050

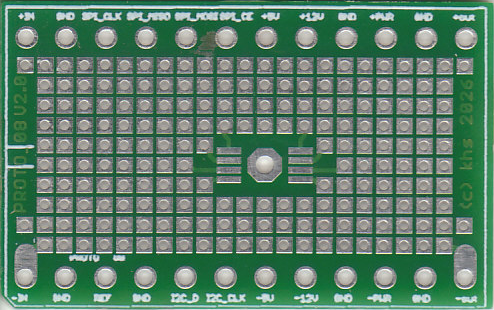

50 mil TSSOP-8 Prototype Board
Combines a general-purpose 50 mil prototyping area with a dedicated TSSOP-8 footprint for integrating compact SMD devices into hand-built circuits.
Order No.: ABL-PU-11-050-T08

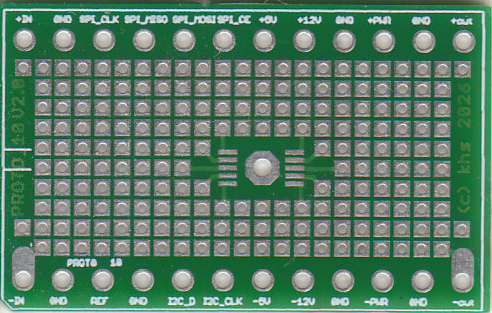

50 mil TSSOP-10 Prototype Board
Combines a general-purpose 50 mil prototyping area with a dedicated TSSOP-10 footprint for integrating compact SMD devices into hand-built circuits.

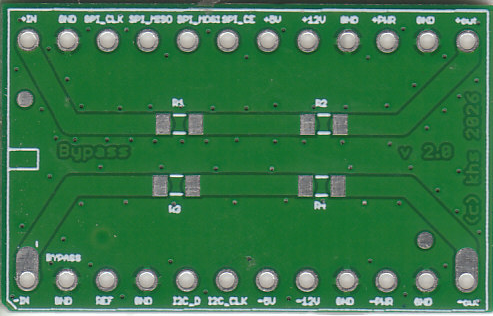

Transmission Line Board
Designed as a dual 50 Ω bypass between adjacent modules, the Transmission Line Board is a versatile debugging and measurement tool.
It provides controlled-impedance access to analog signal paths for probing, signal injection, crosstalk measurements and high-frequency characterization of components such as capacitors and inductors used in EMC design.
Replaceable 0 Ω links and accessible transmission-line sections allow series components and, with minor modifications, shunt components to be added, making it easy to build, modify and evaluate EMC filters directly on the board.
It provides controlled-impedance access to analog signal paths for probing, signal injection, crosstalk measurements and high-frequency characterization of components such as capacitors and inductors used in EMC design.
Replaceable 0 Ω links and accessible transmission-line sections allow series components and, with minor modifications, shunt components to be added, making it easy to build, modify and evaluate EMC filters directly on the board.
Order No.: ABL-PU-11-TRL
Extended Size Prototype Boards
Double Size Prototype Boards provide additional prototyping area for larger circuits while retaining the standard analog::blocks power, signal and interface connections.

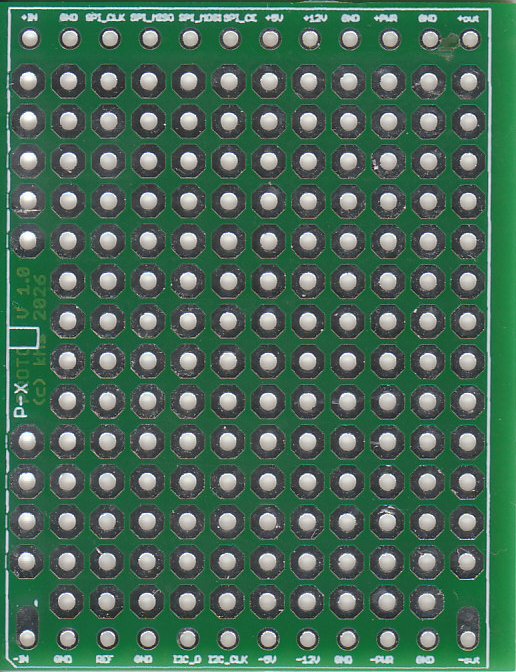

100 mil Double-Height Prototype Board
The 100 mil Double-Height Prototype Board provides moren than twice the prototyping area for larger through-hole circuits, connectors and components while using the standard 2.54 mm grid.
Order No.: ABL-PU-12-100

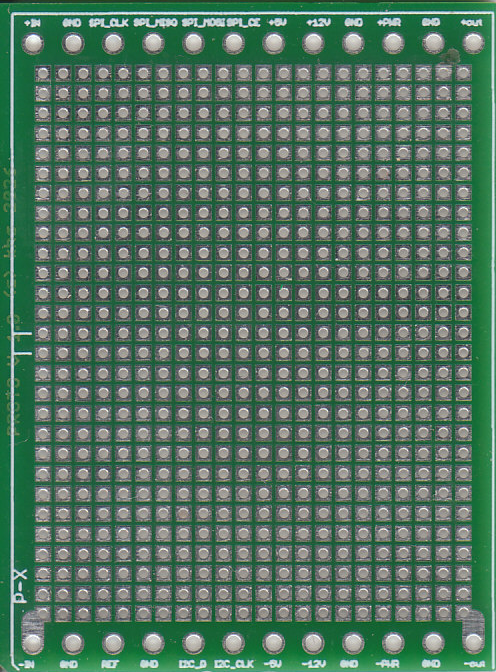

50 mil Double-Height Prototype Board
The 50 mil Double-Height Prototype Board combines the additional board area with a compact 1.27 mm grid, providing significantly more space for dense analog and mixed-signal circuits.
Order No.: ABL-PU-12-050
